A bit of a marmite subject the ACR Anti material rifle,

looking around online I found a few threads of people talking about looks etc but no information from someone who had actually bought one, so I did I wanted it mainly for the peep sights :tup:

The shop cronoed this for me and it is in the 330fps region (not too shabby)

On getting it home I think I am going to have my hands full making this a decent rifle

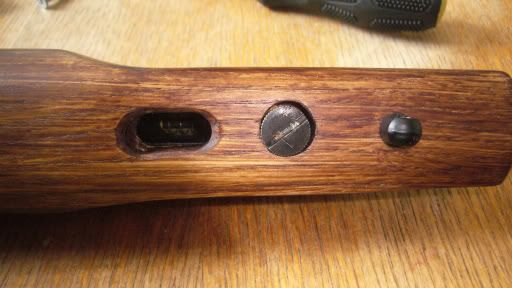

the stain on the wood part of the stock looks like it was done with gravy but is cut well enough to fit the working part of the rifle in I might just refinish it.
the bolt pull is rough and extremely difficult
So on to the dissection:

The bolt is removed by pulling the pin on the lever at the left hand side of the receiver outwards and pulling it backwards (marked with an arrow and the word open on the receiver)



the bolt handle is cast as part of the whole unit

the spring is removed by taking out the two screws located top and bottom at the rear of the bolt. as is the cylinder head (but also seems to be threaded and I have not managed to remove it yet)
Spring is a sizable 9mm and is very similar in length to my L96's spring,
spring guide is plastic and short but fits very snug inside the spring.

the piston is metal and painted which was beginning to flake off and was stuck to the weird piston head.


The hop up adjusts from the top with this screw,


someone thought it would be a good idea to put the hop window 3 or 4 inches from the start of the barrel with an unusual bucking,



The magazine holds a massive eight rounds lol and is loaded from the under side



well tbh I was hoping for the rifle to be a little better despite the extremely low price tag £75/$119 there are problems with the general fitting and finish, materials used and the lack of any chance of getting hold of spares but I thought it would be a fun little project >:D
That's it for now I will update as I get further on with the dismantling process then I will do shooting tests with it in stock form before doing any modifications.


·
Registered
Joined
·
89 Posts
Discussion Starter · #5 · (Edited)
I haven't fired a single round through it yet,will put it back together soon and see how it fires stock then get my thinking cap on and see what improvements can be done :D
I was thinking that the magazine can be extended by using an old barrel but am thinking that 15-20 might be the max.


·
Registered
Joined
·
504 Posts
I saw this on Land warrior the other day! Pretty strange! o_O Got to congratulate you for having the balls to even think about this challenge.. And I thought I was mentally unstable when I brought my AGM L96! If you get it firing like a motherf§cker then the hard work will pay off! Going to follow this so make sure to keep the thread updated..

Zero


·
Registered
Joined
·
89 Posts
Discussion Starter · #9 ·
I did a small firing test (15 rounds) at my friends house where I do my rifle testing
.36s (madbull) were going nowhere so ended up using .20 blasters which we usually use for pistol ammo,
It was struggling to even hop the .2s, got a little under half of them to make it to the end of the 30m range but nowhere near the target.
I am going to put the lack of range down to the lack of any airseal, the whole thing leaks like a sieve.
There were also a few problems with the piston engaging including slam firing on at least one occasion.

So what to do with the rifle?
I am thinking to do some kind of ER/R hop mod even with the unusual location,
Then try and fix all the holes all over the place and get a decent airseal.
then make or get someone to make a new set of sears and piston to match.


·
Registered
Joined
·
909 Posts
It seems like a good rifle to try to incorporate a LRB type barrel. That seems like it would be the easiest way to get it to trow bbs out there without trying to mess with any conventional hop-up systems.
