[toast]

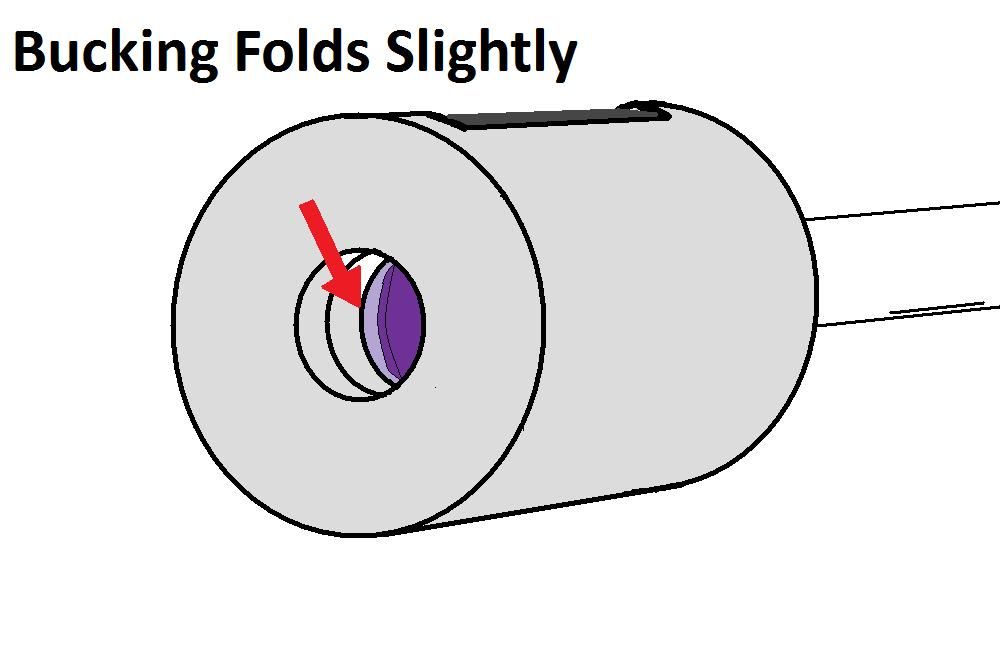

Today I re-assembled my hop up chamber trying to shim my hop and found that the left side of my bucking slightly folded itself into the center. Is this normal? Is this why I'm getting a rightward curve? Any help would be very much appreciated.

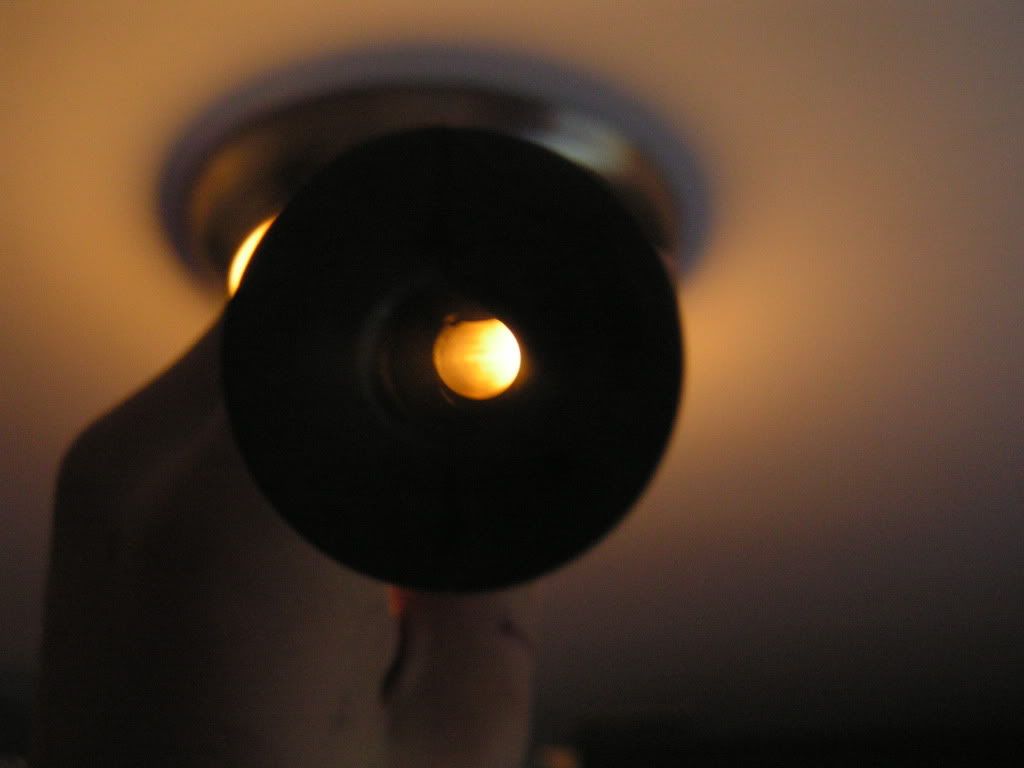

Sorry for the less then perfect photo in advance



[fuzzywolly]

Are you referring to the nub that is being pushed down?

If NOT, then all you have to do is make sure the bucking is aligned correctly, especially in the small slit in the hop up chamber shell.



[toast]

That's the problem though, It is aligned correctly :/



[fuzzywolly]

Is the "folded part" any chance to be the nubbing? Lets rule this out before analyzing the rest.



[toast]

No, the arm is pushing down on the top in the first picture. That is the round curve. To the left of that is where it is pushed slightly into the center.



[MGunner]

No, the arm is pushing down on the top in the first picture. That is the round curve. To the left of that is where it is pushed slightly into the center.

Take the first picture again, but with flash. The are your talking about is too dark to see much.



[toast]

Never Mind, I fixed it. I just took my un-jamming rod and softly pushed it into the correct position.
I don't know why I didn't try that in the first place :/

Sorry for wasting your time guys.
