Custom 90� VSR trigger

64400 Views 339 Replies 66 Participants Last post by  Springer,
Springer
Custom 90° VSR trigger (S-trigger)

LATEST VERSION S-trigger v.7



I hope that you don't forget on my S-trigger :).

It takes me some time to figure out what I want from the new trigger.

It is mostly:
  • Preserved safety function ( its challenge in this design )
  • Zero need of modification to the gun or trigger guard ( my priority )
  • Simply as possible
  • Robust and durable
  • Versatility ( TM VSR/TM L96 in one package )
  • Some adjustability ( length of trigger pull )
  • Light trigger pull ( even better than on last version )

I have prototype of a new S-trigger v.7 on which I am testing above-mentioned.
Its not the final design, needs some tweaking but is not far from that.

How much I wanted to makes it different from ZERO trigger. I spent a month by trying to make it completely different :) In the end its almost from 30% Zero trigger. Internally its almost completely redesigned. Less complex and easier to manufacture.

Stay tuned for news

You can also follow me on Facebook , Instagram and Youtube.

Info for Older version of the trigger ( v.6 ) below in code
Code:
[B]For[/B] these who don't know my trigger , I call him [U]S-trigger[/U]. Functionally is based on Noobies M-trigger. So if there anybody who still trying to find some M-triggers for sale , I can offer you my S-trigger which has all features of M-trigger and something more.


[B]Advantage[/B] of my trigger beside other after market triggers is preserved function of [U]safety[/U] [only my S-trigger and V-trigger has safety].

For example on stock JG BAR-10 spring is trigger pull weight on my S-trigger [U]1,5 lb[/U]. and on V-trigger [U]4,5 lb[/U].

[B]It[/B] is simple 90 degree design focused on durability. All steel construction of trigger is ready for strongest upgrades available on market.

[U][B]Trigger pull weight[/B][/U]

Average trigger pull weight on my S-trigger is 1.5 lb.
[url=http://www.youtube.com/watch?v=uYyk44FLK1U?t=20s]trigger pull measuring - YouTube[/url]

[U][B]Trigger guard modification[/B][/U]

[URL=http://s1260.photobucket.com/user/Gersprin/media/S-trigger/2_zpsvkx4ofxa.jpg.html][IMG]http://i1260.photobucket.com/albums/ii566/Gersprin/S-trigger/th_2_zpsvkx4ofxa.jpg[/IMG][/URL]

[URL=http://s1260.photobucket.com/user/Gersprin/media/S-trigger/1_zps4wqhuus1.jpg.html][IMG]http://i1260.photobucket.com/albums/ii566/Gersprin/S-trigger/th_1_zps4wqhuus1.jpg[/IMG][/URL]

[B]S-trigger[/B] is compatible with all after-market 90 degree pistons.
- [URL="http://www.uncompany.com/pageproductdetails.asp?prodid=22983"]Laylax[/URL]
- [URL="http://www.uncompany.com/pageproductdetails.asp?prodid=33620"]King Arms[/URL]
- [URL="http://shop.ehobbyasia.com/upgrade-part/parts-upgrade-rifle/cylinders-pistons/action-vsr-10-piston-with-stainless-steel-rear-end.html"]Action[/URL]
- [URL="http://www.x-fire.org/vsr10/e.vsr_pistonend.html"]PDI[/URL] (for conversion of standard 45 degree PDI piston)
- [URL="http://edgicustom.blogspot.sk/2008/01/jg-bar-10-upgrades.html"]Edgi[/URL]
- [URL="http://rangerscustoms.wix.com/rangerscustoms"]Ranger[/URL]

[U][B]Materials[/B][/U]

Sides: Aluminum
Piston sear: Stainless steel (Heat Treatment)
Pins: 4mm cold rolled steel
Thread inserts: Tappex Microbarb® M4 (brass)
Spring: 0,5 mm
Other parts: Stainless steel
Magnet : M35 (10x3mm)

[URL=http://s1260.photobucket.com/user/Gersprin/media/S-trigger/WP_20140725_006%20800x600_zpswtdf2g7n.jpg.html][IMG]http://i1260.photobucket.com/albums/ii566/Gersprin/S-trigger/WP_20140725_006%20800x600_zpswtdf2g7n.jpg[/IMG][/URL]
[URL=http://s1260.photobucket.com/user/Gersprin/media/S-trigger/WP_20140725_20_04_43_Pro%20800x600_zpsidhsul5i.jpg.html][IMG]http://i1260.photobucket.com/albums/ii566/Gersprin/S-trigger/WP_20140725_20_04_43_Pro%20800x600_zpsidhsul5i.jpg[/IMG][/URL]
[URL=http://s1260.photobucket.com/user/Gersprin/media/S-trigger/WP_20140725_20_04_01_Pro%20800x600_zps6cxiogxa.jpg.html][IMG]http://i1260.photobucket.com/albums/ii566/Gersprin/S-trigger/WP_20140725_20_04_01_Pro%20800x600_zps6cxiogxa.jpg[/IMG][/URL]

EXPLODED VIEW

[URL=http://s1260.photobucket.com/user/Gersprin/media/S-trigger/explode_zps8mupc9fk.jpg.html][IMG]http://i1260.photobucket.com/albums/ii566/Gersprin/S-trigger/th_explode_zps8mupc9fk.jpg[/IMG][/URL]

I know there are some users of my trigger. If anybody of them notice this thread, please let me know if you are satisfied with them or not. Thanks.
See less See more
7
Reply
Save
Like
  • Like
Reactions: 1
101 - 112 of 340 Posts
Springer
Plazmaburn said:
Overall I am quite happy with the trigger. A step up from the finish on my last trigger I got from you. Both are nice, the new one is just better. Nice clean, smooth, and light trigger pull as expected, I think it might be a little lighter then the last one.

I do however have a little problem, the rear mounting screw does not line up on my HFC receiver. I am sure I can unscrew it and move it, or mill out the hole a little and make it fit.

I have also experienced some no catch, as in the sear does not catch the piston. This is due to holding the rifle downward during cycling. Also noticed this if you hold the rifle off axis as well, though it was only once. I think it can be fixed if you move the magnets a little bit up and forward, or use a little stronger magnets. That is one thing will not be able to test.
Click to expand...
- HFC is not TM VSR compatible ? How much is ,, little ,,to make it fit ?

- Yes I know about it , When you cock straight down it has some problems with catching. Few degrees of angle UP and it works great. Problem is probably strength of magnets. I bought them as M35 but I dont think so they
have claimed strength.

Can be fixed by adding two more magnets (one to each side)
Reply
Save
Like
Springer
HLD said:
Springer, I've installed your trigger unit in my new BAR10. Very happy with it. Question: I managed to strip the threads of the front screw hole in the receiver. You once posted that you've used a helicoil to fix that problem. Which size was that?
Click to expand...
Hi, nice to hear.

It was M3x0,5

Helicoil Thread Repair Kit M3 x 0 5 Drill and Tap Insertion Tool | eBay

Helicoil Thread Repair Kit M3 x 0.5 Drill and Tap Insertion Tool - - Amazon.com
Reply
Save
Like
Springer
It looks around 1 mm (0.039 inch). If you have 3mm round file it will be easy to fix it.
Reply
Save
Like
  • Like
Reactions: 1
Springer
Please ensure that spring guide stopper is in vertical position. He should touch to the end of slot in receiver. When is not vertical it could cause stiff bolt return.

Attachments

See less See more
Reply
Save
Like
Springer
HLD said:
Springer, the stock spring guide stopper has a small indentation where the small 'pin' on the back of the spring guide goes. Why is the spring guide stopper on your S-trigger smooth?
Click to expand...
It has more PROs than CONs for me. In earlier triggers I was making classic stopper with hole for pin. As you may know my trigger isn't made completely on CNC , so some drill operations were made by drill. It was impossible to make it every time in same quality. When I don't drill it directly where it should be it cause problems in cylinder. Spring guide wasn't aligned with piston and there starts problem with cocking. With no hole is ,, self-centering,,. Almost every after-market trigger using this or similar design.

Do you have any specific problem with that design ? or are you only curious ?
Reply
Save
Like
Springer
I should send you solid spring guide stopper (non-removable one). If you are OK with that.
Reply
Save
Like
Springer
Great to hear. Its good to know that trigger is in right hands.
Reply
Save
Like
Springer
Hi guys. After some time I am back here with some news.

I hope that you don't forget on my S-trigger :). Someone still using him, someone want to use and someone don't know about existence of trigger.

It takes me some time to figure out what I want from new trigger.

It is mostly:
  • Preserved safety function ( its challenge in this design )
  • Zero need of modification to gun or trigger guard ( my priority )
  • Simply as possible
  • Robust and durable
  • Versatility ( TM VSR/TM L96/M28 in one package )
  • Some adjustability ( length of trigger pull )
  • Light trigger pull ( even better than on last version )

I have prototype of a new S-trigger v.7 on which I am testing above-mentioned.
Its not the final design, needs some tweaking but is not far from that.

How much I wanted to makes it different from ZERO trigger. I spent a month by trying to make it completely different :) In the end its almost from 30% Zero trigger. Internally its almost completely redesigned. Less complex and easier to manufacture.

Stay tuned for news

You can also follow me on Facebook , Instagram and Youtube.

See less See more
Reply
Save
Like
  • Like
Reactions: 5
Springer
Yes. Magnetic trigger must retreat against versatility.
Reply
Save
Like
  • Like
Reactions: 1
Springer

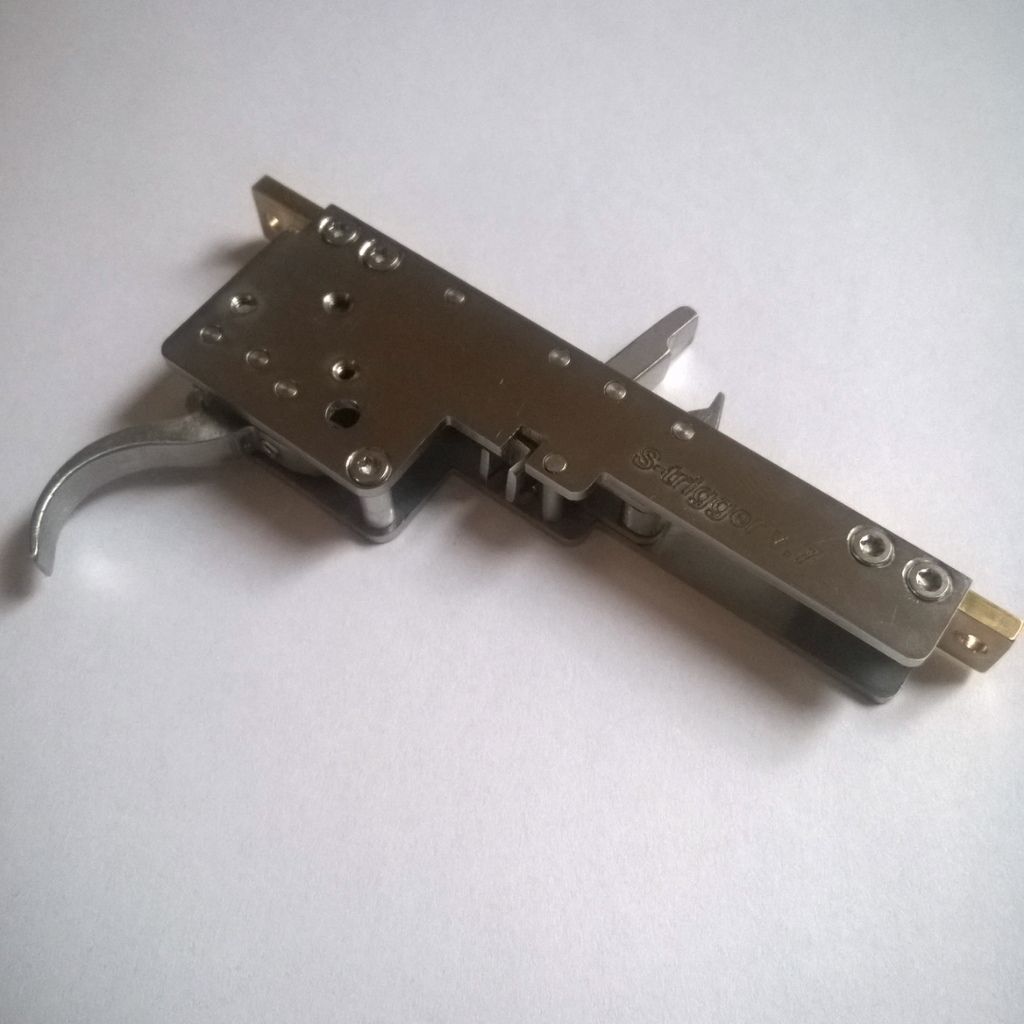

Pre-production sample of VSR10/TML96 S-trigger v.7

See less See more
Reply
Save
Like
  • Like
Reactions: 4
Springer
Eagle2 said:
How much would it cost?
Click to expand...
Will be for 110$.
Reply
Save
Like
  • Like
Reactions: 1
Springer
First 20 triggers are available. If you're interested contact me via PM, Facebook or my website. These first 20 are not compatible with Mancraft, so please consider it. All the next will be.

VIDEO
Reply
Save
Like
  • Like
Reactions: 1
